1kv Cu/PVC/PVC NYY Power Cable LV Power Cable 4x50mm2 IEC60502-1
Application:
1kv Cu/PVC/PVC NYY Power Cable LV Power Cable 4x50mm2 IEC60502-1 NYY cables can be used in most applications where mechanical stresses are not anticipated – indoors, outdoors, direct burial underground, in concrete. They have an operating temperature range of -15oC to +70oC when fixed.
CONSTRUCTION
Conductor
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
Insulation
PVC (Polyvinyl Chloride)
Filler
PVC (Polyvinyl Chloride)
Sheath
PVC (Polyvinyl Chloride)
Core Identification
3 core: Green/Yellow Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Brown Black Grey Blue
7 core and above: Black with White numbers
Sheath Colour: Black
1kv Cu/PVC/PVC NYY Power Cable LV Power Cable 4x50mm2 IEC60502-1 technical Parameters:
| Nominal Cross sectional area | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal PVC Sheath Thickness | Overall Diameter (Approx.) | Weight of Cable (Approx.) |
| mm² | mm | mm | mm | mm | Kg/Km |
| 4x50 | 8.8 | 1.4 | 1.8 | 34 | 2680 |

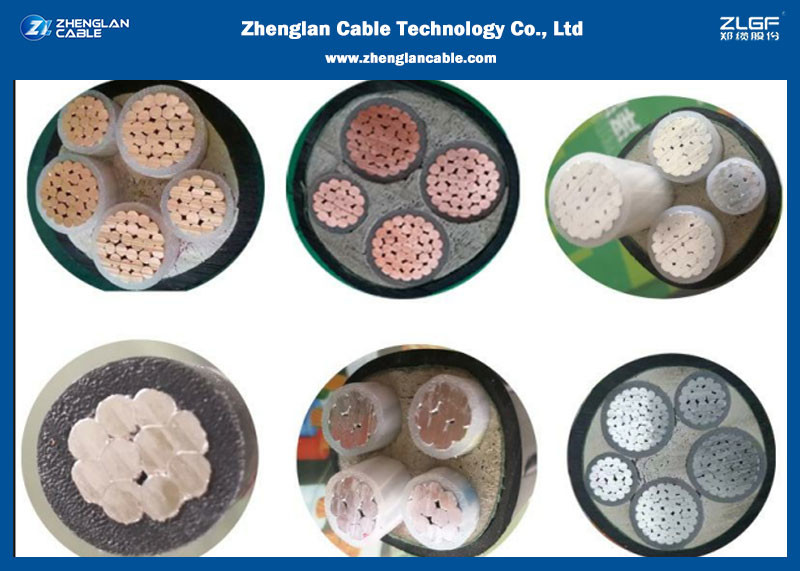

1kv Cu/PVC/PVC NYY Power Cable LV Power Cable 4x50mm2 IEC60502-1 Pictures:
1kv Cu/PVC/PVC NYY Power Cable LV Power Cable 4x50mm2 IEC60502-1 Test equipment:
About zhenglan cable:
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
